The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

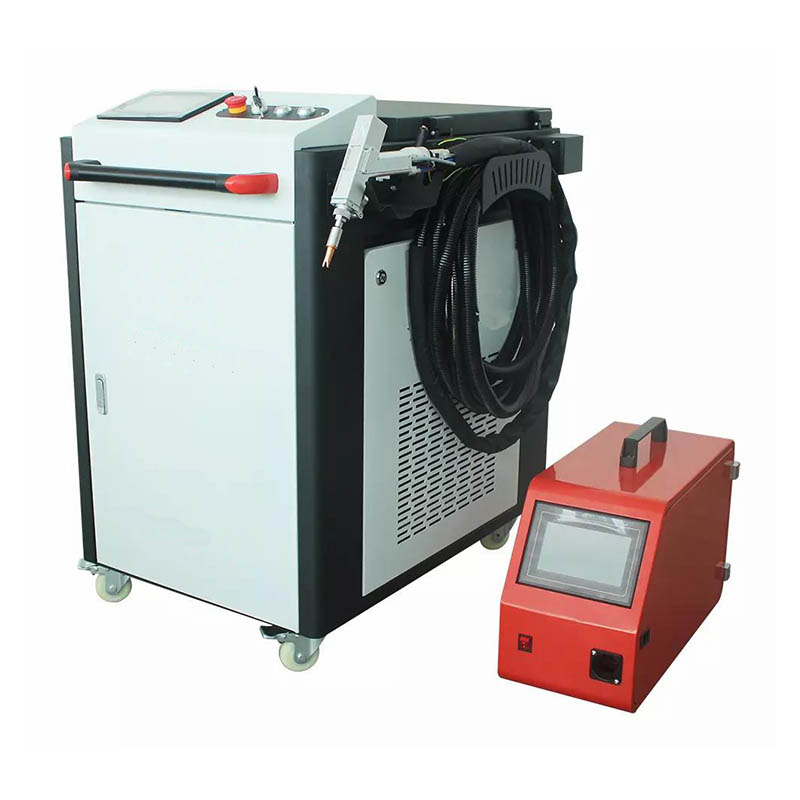

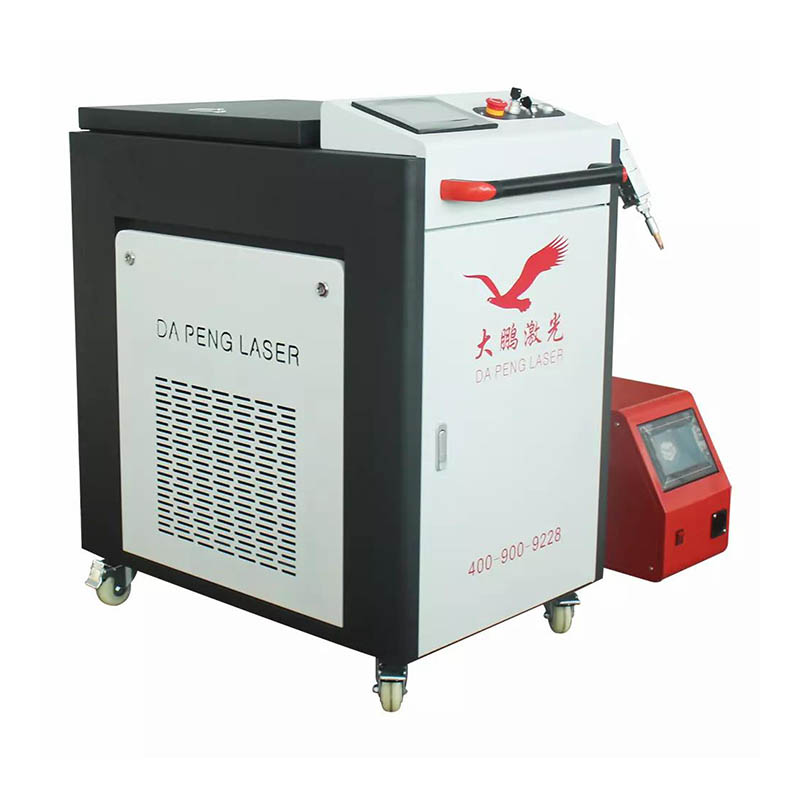

Handheld Laser Welding Machine 1500W 2000W laser welder Aluminium stainless steel Портативная лазерная сварочная машина 1500W 2000 Вт лазерная сварщик алюминиевая нержавеющая сталь
Product advantages:
The laser welding machine adopts fiber laser, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times than that of YAG laser.
Features:
1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2. High cooling rate, which can weld fine weld structure and good joint performance.
3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5. No consumables, small size, flexible processing, low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Application areas:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.
Technology parameters
| Laser power | 1500W/2000W/3000W |
| Center wavelength | 1080nm |
| Output power stability | ＜3% |
| Laser frequency | 50Hz-5KHz |
| Adjustable power range | 10-100% |
| Beam quality | 1.1 |
| Optimal operating environment | Temperature 0-40 ° C, humidity 20% -80% |
| Electricity demand | AC220V |
| Output fiber length | 10m |
| Cooling method | Chiller inside |
| Total power | 7kw(1500w); 9KW(2000w) |

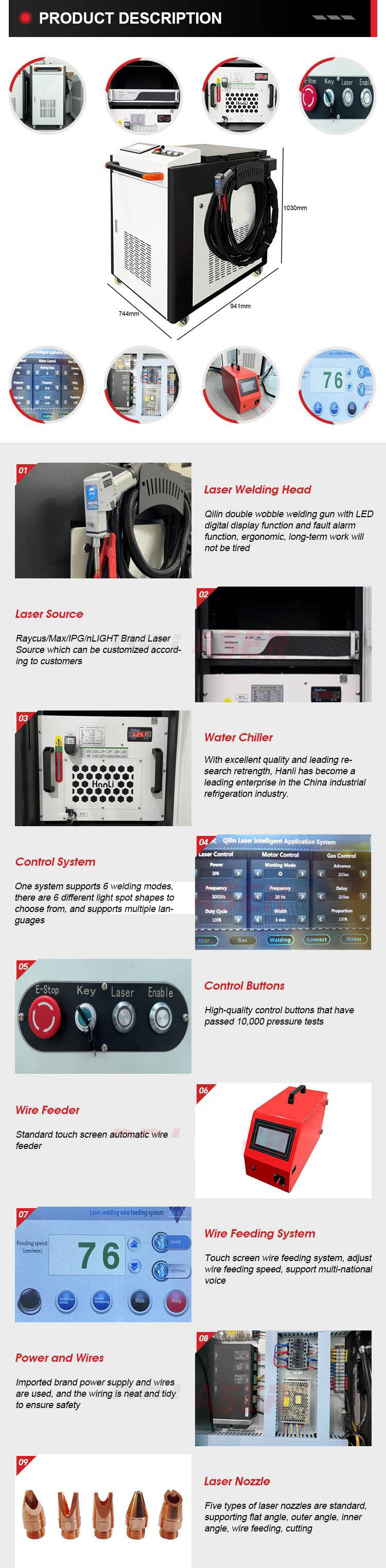

Machine configuration:
| Name | Specs | Qty | Place of origin |
| Cabinet | Fiber welding cabinet | 1 | China |
| Laser source | DAPENG Customized | 1 | China |
| Welding head | SUP/Qilin welding head | 1 | China |
| Wire feeder | Use 0.8/1.0mm welding wire | 1 | China |
| Chiller | 1.2P Double chilling | 1 | China |
| Laser control system | Touch screen | 1 | China |
| Handheld safety controller | Prevent accidental laser emit | 1 |
China |
Company Team & Exhibition
We are manufacturer of fiber laser cutting machine with 12 years of production experience.We offer complete machine solution,also provide laser source,CNC controller ,laserhead, water chiller,servo,custom made machine table,training and service,etc. one-stop solution!
Our core advantages:
1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.
We are looking for distributor. Price is more competitive.
We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
DAPENG LASER: Manufacturer of laser equipment for laser marking, welding, cutting. Looking for distributor.
