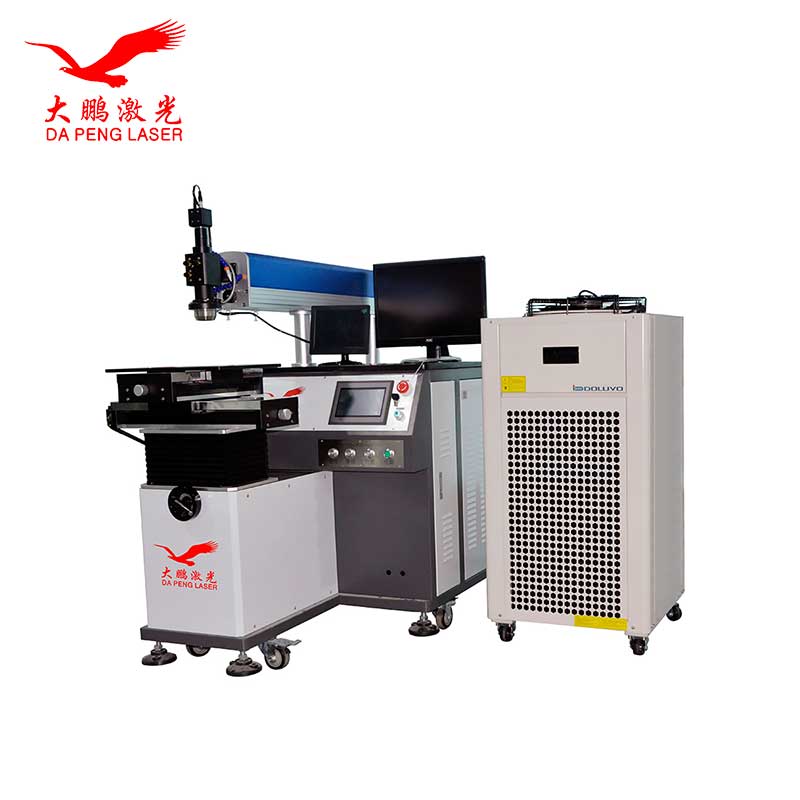

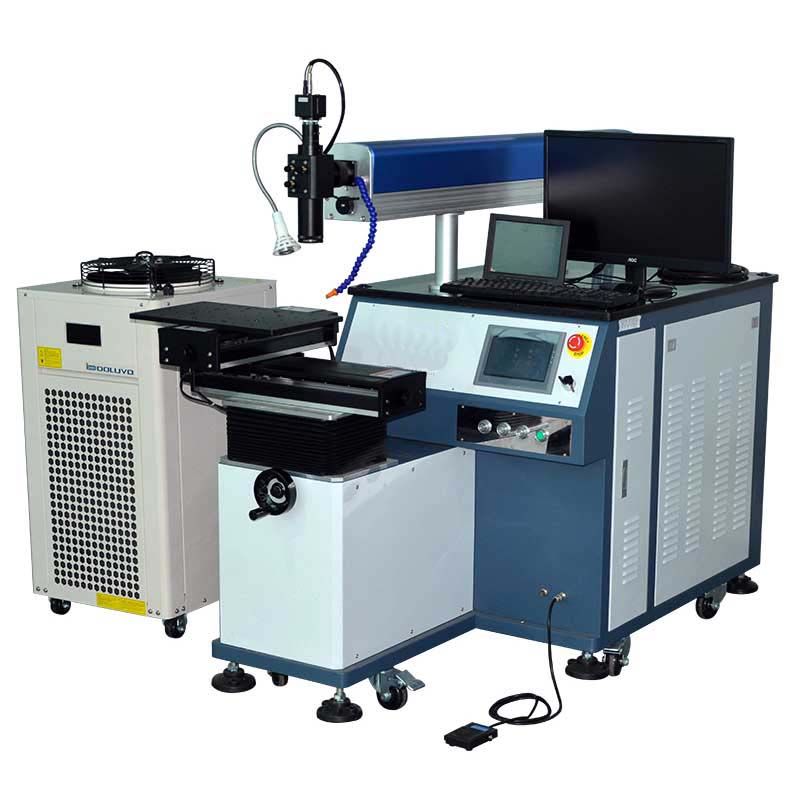

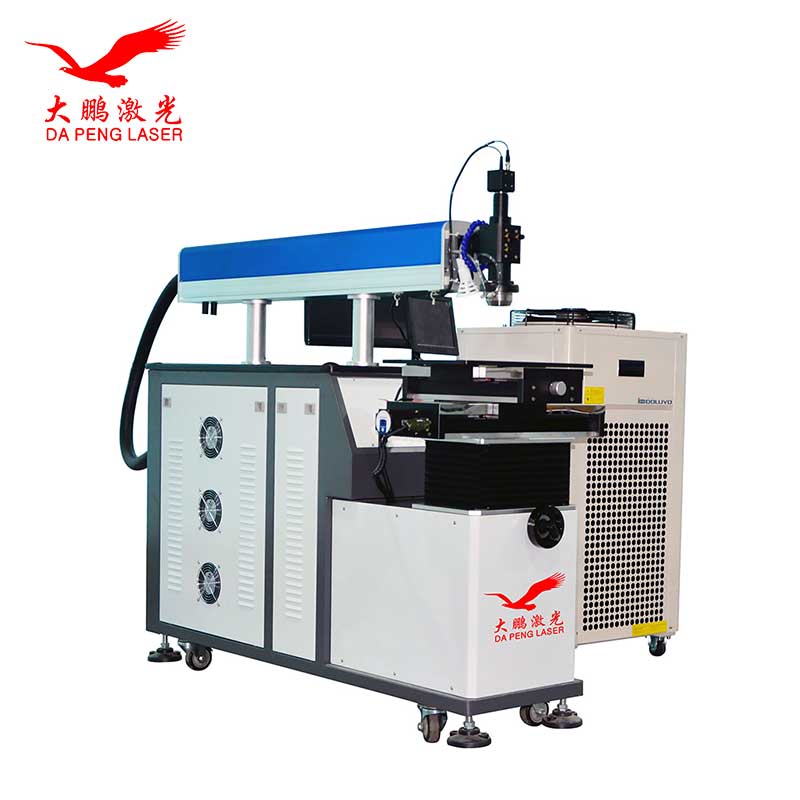

200W automatic laser welding machine автоматическая лазерная сварочная машина

Laser welding machines are widely used in the processing of dental dentures, keyboard welding, silicon steel sheet welding, sensor welding, battery sealing cover welding, etc.

Features:
High degree of automation; simple welding process;
The non-contact method of operation achieves clean and environmentally friendly requirements.
Laser welding machines are widely used in the processing of dental dentures, keyboard welding, silicon steel sheet welding, sensor welding, battery sealing cover welding, etc.
Machining the workpiece with a laser welding machine can improve work efficiency, and the finished workpiece has a beautiful appearance, small weld seam, large welding depth and high welding quality.
Application:
Manufacturing, electronics industry, powder metallurgy, automotive industry, biomedicine;
Laser welding of BT20 titanium alloy, HEI30 alloy, LI-ion battery, etc.

Specification:

Power	200W
Laser wavelength	1064nm
Frequency	1-100Hz
Focus lens	100-150mm
Welding depth	0.1-2mm
Pulse width	0.5-20ms
Spot size	0.2-2mm
Min welding molten pool	0.15mm
Rated power	10KW
Power require	Single phase 220 ±15% VAC 50Hz 30A above
Observation system	CCD
Working table stroke	300×200
Laser cavities	160mm gold-plated metal double light cavity
Cooling system	Water cooling
Rotary device	180 degrees rotating(Optional)
Consumables	Xenon lamp, protective lens
