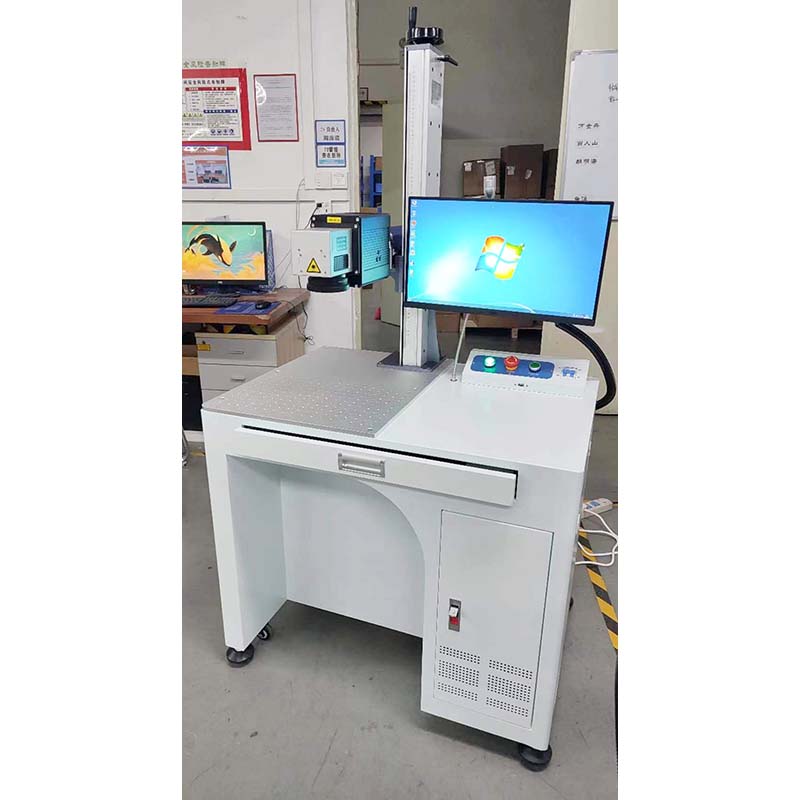

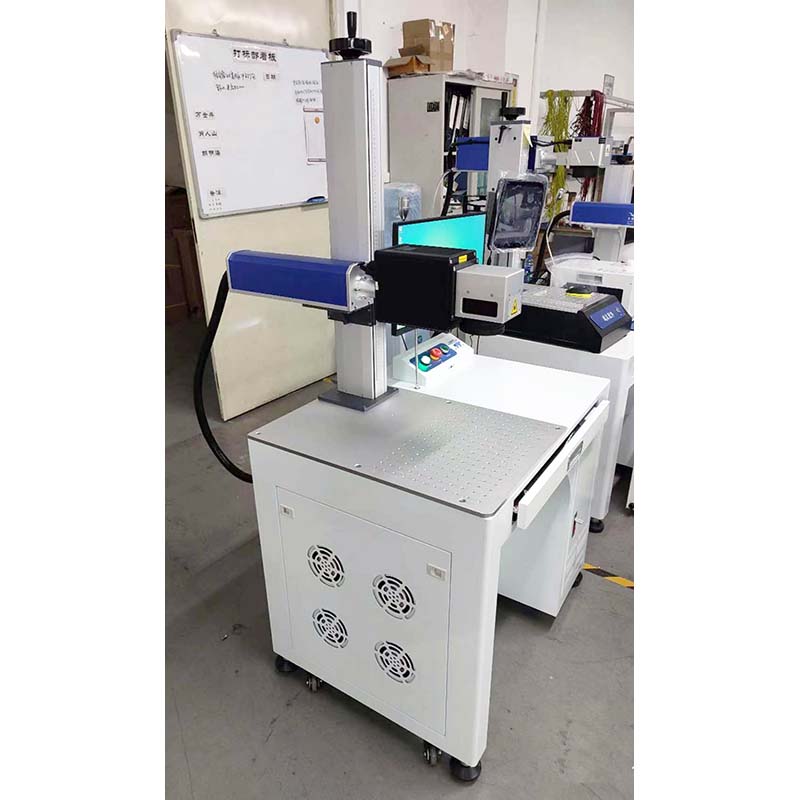

3D laser engraving machine with 3D laser head and 3DLaser software


3D laser engraving machine. Use 3Dlaser software. Price is competitive. Can share teaching videos and manual for free.

Features:
1. Excellent light quality:
    Comparing with traditional solid laser marking/engraving machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking/engraving.
2. Low usage cost:
    Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.
3. Free maintenance & long service life:
    Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
    Its processing speed is 5-10 times faster than traditional laser marking machine.
5. Mature technology:
    Our company founded in 2008, 15 years experience, good quality.
Application:
Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches, Planting Coating Materials, Spray Material, Plastic, Rubber, Spectacles,Jewelry engraving,etc.
Specification:

Laser wavelength  1064nm
Power adjustment range  10-100%
Repetition frequency  20-80KHz
Output beam quality  <1.8m²
Marking linear depth  0.01-0.2mm
Min. Spot diameter  0.01mm
Min. Character size  0.1mm
Repetition accuracy  ±0.02mm
Max. Liner marking speed  7000mm/s
Marking format PLT, DXF, CDR, AI, DWG, etc.
Software  3Dlaser software
Field lens F210mm 150×150mm, Z±30mm
Power consumed <500W
Electrical demand 220V
Cooling mode Air-cooling
Control interface USB
Laser source Specialized laser source for 3D laser
Computer WIN7/10
Machine Size & Weight 880×650×1450mm  120Kg

3D laser engraving machine. Use 3Dlaser software. Price is competitive. Can share teaching videos and manual for free.

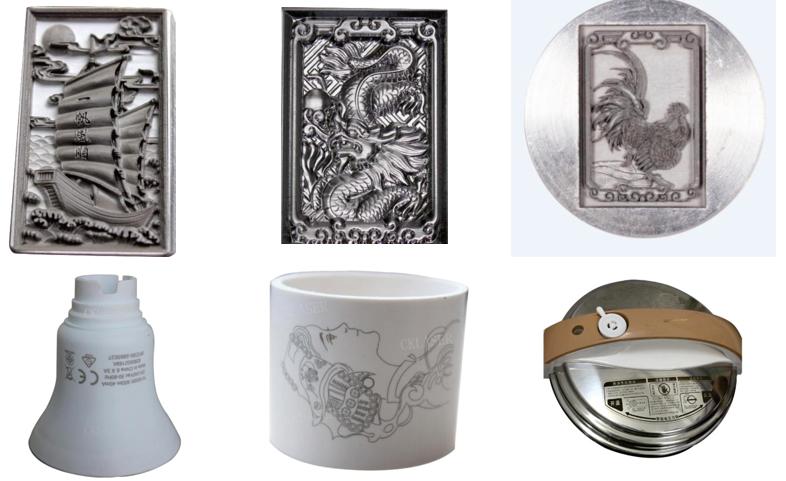

3D laser engraving effect:

manager@dapeng-laser.com Whatsapp:+8618565695703   Contact KENDY and send you machine teaching videos and manual for free.
