Features:
1.Excellent light quality:
Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
2. Low usage cost:
Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.
No consumable ink cost burden and eliminating the troubles of cleaning the inkjet printer nozzle everyday.
3. Free maintenance & long service life:
Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
Its processing speed is 5-10 times faster than traditional laser marking machine.
Core advantages:

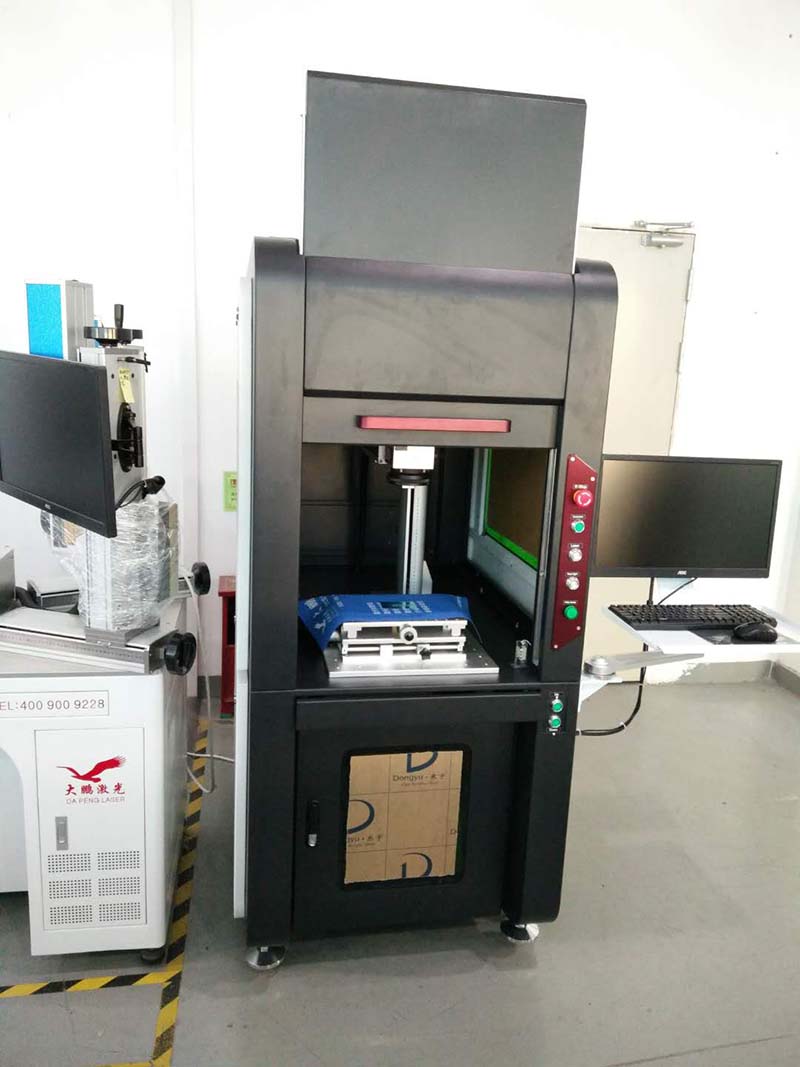

1. Total enclosure machine box
2. Electric lifting up and down
Videos: www.facebook.com/dapenglaser www.linkedin.com/in/dapenglaser

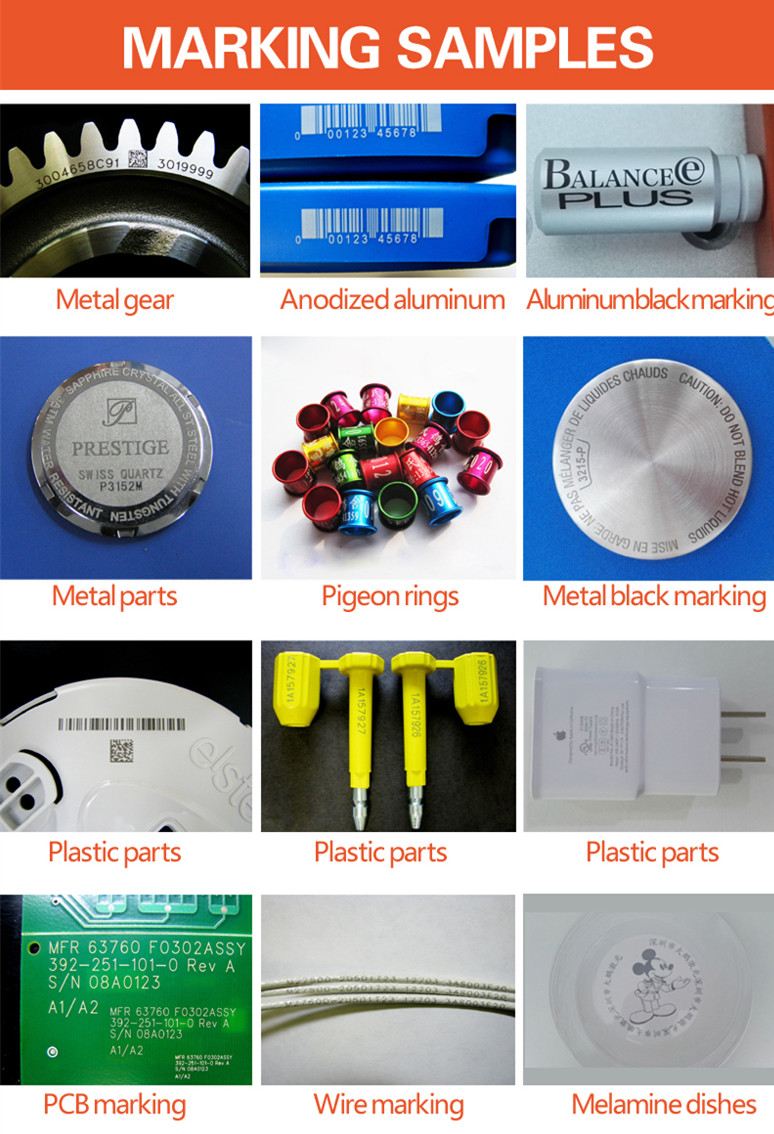

Application:
Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches, Planting Coating Materials, Spray Material, Plastic, Spectacles,etc.
Specification:
|
Laser wavelength |
1064nm |
|
Power adjustment range |
10-100% |
|
Repetition frequency |
20-80KHz |
|
Output beam quality |
M2:1.2~1.8 |
|
Marking linear depth |
0.01-0.2mm |
|
Min. Spot diameter |
0.01mm |
|
Min. Character size |
0.1mm |
|
Repetition accuracy |
±0.002mm |
|
Max. Liner marking speed |
7000mm/s |
|
Field lens F210mm |
110x110mm |
|
Power consumed |
500W |
|
Electrical demand |
Ac220V±10%.50HZ.10Amp |
|
Cooling mode |
Air-cooling |
|
Operational Temp Range |
10-40℃ |
Software: EZCAD
|
True Type Fonts |
Single Stroke Fonts |
Elliptical Text |
|
Sequential Serial Numbers |
Customizable Auto Dating |
Barcodes |
|
QR Codes and Data Matrix |
UID Wizard |
Logos |
|
Images - JPG, TIF, GIF |
CorelDraw, Adobe Illustrator |
Raster Graphics |
|
Vector Graphics |
CAD Files |
|
Materials:
|
Stainless Steel |
Steel |
Aluminum, Carbide |
|
Nickel |
Titanium |
Cast Iron |
|
Chrome |
Painted Metal Alloys |
Multi-Coated Metals |
|
Plastics/Rubber |
Backlit Buttons |
Polycarbonate |
|
PVC |
Composites |
Many more materials |
